Road and Traffic Signs Category

The 'dual carriageway ends' sign appears in a red triangle. It shows two carriageways coming together to indicate two-way traffic will continue ahead on a single carriageway road. You'll soon notice the central reservation coming to an end and lanes beginning to merge.

A mandatory speed limit sign above the hard shoulder shows that it can be used as a running lane between junctions. You must stay within the speed limit. Look out for vehicles that may have broken down and could be blocking the hard shoulder.

This sign indicates a danger ahead and will be accompanied by a sign below indicating the nature of that hazard in writing.

The exit from a motorway is indicated by countdown markers. These are positioned 90 metres (100 yards) apart, the first being 270 metres (300 yards) from the start of the slip road. Move into the left-hand lane well before you reach the start of the slip road.

The yellow boxes filled with criss-crossing yellow lines are known as box junctions. Although you must not enter the box until your exit road is clear, you may wait in one if you want to turn right and are only stopped by oncoming traffic or other vehicles waiting to turn right.

When approaching a tunnel, switch on your dipped headlights. Be aware that your eyes might need to adjust to the sudden darkness. You may need to reduce your speed.

Under the regulations, you must not enter a yellow box junction unless your exit is clear. However, you can enter the box and wait if you want to turn right and are only blocked by oncoming traffic or other vehicles also waiting to turn right.

A red cross above the hard shoulder means that it's closed as a running lane and should only be used for emergencies or breakdowns. At busy times, the hard shoulder may be used as a running lane; the red cross will then be replaced by a mandatory speed-limit sign.

Look out for signs above your lane or on the central reservation. These will give you importantn information or warnings about the road ahead. To allow for the high speed of motorway traffic, these signs may light up some distance from any hazard. Don't ignore the signs just because the road looks clear to you.

Sign informs drivers that they have priority over traffic approaching them from oncoming vehicles approaching them from the opposite direction.

Always check the road signs. Triangular signs are warning signs: they inform you about hazards ahead and help you to anticipate any problems. There are a number of different signs showing pedestrians. Learn the meaning of each one.

This sign will be located on the main carriageway and show you the distance until the motorway, and associated speed limits, end.

There is a swing bridge or one that can open for boats at a river crossing ahead. Category: Warning signs.

Bus-lane signs show the vehicles allowed to use the lane and its times of operation. Where no times are shown, the bus lane is in operation 24 hours a day.

Stop signs have a distinctive octagon shape, while an upside down triangle with a red outline is used for give way signs.

The 'stop' sign is the only road sign that's octagonal. This is so that it can be recognised and obeyed even if it's obscured (for example, by snow).

An Urban Clearway Monday to Friday refers to a period of operation in which stopping or parking a vehicle is not allowed on the road or side of the road, except for the purpose of dropping off or picking up passengers. Urban clearways are commonly found in built-up areas and have clearly designated hours of operation.

The “Traffic Merges from Left” sign warns you that traffic from a separate lane will be joining the road you are on from the left-hand side. This merging traffic does not have priority and must yield to you, the driver on the main road.

Sign warns road users that they are approaching a Zebra crossing and should be prepared to stop if necessary.

This sign indicates that there are waiting restrictions. It's normally accompanied by details of when the restrictions are in force. Details of most signs in common use are shown in The Highway Code. For more comprehensive coverage, see Know Your Traffic Signs.

A green arrow indicates that the lane is available to traffic facing the signal. A white diagonal arrow means that the lane is closed ahead and traffic should move to the next lane on the left. A red cross means that the lane is closed to traffic facing the signal.

A red cross above the hard shoulder shows that it's closed as a running lane and should only be used for emergencies or breakdowns. On a smart motorway, the hard shoulder may be used as a running lane at busy times.

This crucial road sign warns drivers about upcoming traffic flow in both directions.

This sign is found where a shallow stream crosses the road. Heavy rainfall could increase the flow of water. If the water looks too deep or the stream has spread over a large distance, stop and find another route.

Drivers are instructed that the left turn is prohibited for vehicles.

You should change lanes as directed by the sign. Here, the right-hand lane is closed but the
left-hand and centre lanes are available. Merging in turn is recommended when it's safe and traffic is going slowly; for example, at roadworks or a road traffic incident. When vehicles are travelling at speed, this isn't advisable and you should move into the appropriate lane in good time.

This sign is found in or at the end of a one-way system. It warns you that traffic will be crossing your path from both directions.

A blue rectangular sign showing a bicycle with a lane line indicates a mandatory route for cyclists. In addition to the road sign, this cycle lane will be separated from other traffic by a solid white line. You mustn't drive or park in the cycle lane during its times of operation.

Brown panels show the route to tourist attractions. The name of the junction may be shown at the top of the sign.

Generally, vehicles shouldn't park partially or fully on verges, footpaths or pavements. However, it's becoming more common for this to be allowed on some narrow streets. Special parking signs will show where it's allowed.

There will be an orange label on the side and rear of the tanker. Look at this carefully and report what it says when you phone the emergency services. Details of hazard warning plates are given in The Highway Code.

If there's a bend just before a level crossing, you may not be able to see the level-crossing barriers or waiting traffic. These signs give you an early warning that you may find these hazards just around the bend

'No vehicles over height shown' sign. These indicate that vehicles over a certain width should avoid a narrow route. They indicate that it is an offence for over-height vehicles to pass.

Warning sign that there is a T-Junction ahead with priority given to drivers turning right.

Be aware that older people might take a long time to cross the road. They might also be hard of hearing and not hear you approaching. Don't hurry older people across the road by getting too close to them or revving your engine.

You'll generally see this sign at the approach to a pedestrian-only zone.

Due to the position of the road it is likely that may be a risk of ice or packed snow so skidding may be an issue.

You'll generally see this sign at the approach to a pedestrian-only zone.

Areas of 'hatched markings' such as these are to separate traffic streams which could be a danger to each other. They are often seen on bends or where the road becomes narrow. If the area is bordered by a solid white line, you must not enter it except in an emergency.

These signs are often seen in one-way streets that have more than one lane. When you see this sign, use the route that's the most convenient and doesn't require a late change of direction.

Where a motorway has a steep uphill gradient, slow-moving, large vehicles might get in the way of other traffic. An extra lane on the left may be provided for these slow-moving vehicles. It allows faster-moving traffic to flow more easily.

Look for and obey traffic signs. Disobeying or not seeing a sign could be dangerous. It may also be an offence for which you could be prosecuted.

With-flow bus and pedal cycle lane sign showing hours of operation. Where no times are shown, the bus lane operates at all times. The word 'local' on the bus symbol means the only buses that may use the lane are those running a local service.

Where you see this sign, the 20 mph restriction starts. Check all around for possible hazards and only increase your speed if it’s safe to do so.

When a diversion route has been put in place, drivers are advised to follow a symbol, which may be a black triangle, square, circle or diamond shape on a yellow background. Category: Road and traffic signs.

This plate is used with level crossing warning signs: advance warning of light signals at a level crossing with or without a gate or barrier.

Some crossings have gates but no attendant or signals. You should stop, look both ways, listen and make sure that no train is approaching. If there's a telephone, contact the signal operator to make sure it's safe to cross.

Plate used with level crossing warning signs: advance warning of light signals at a level crossing with or without a gate or barrier.

Sign warns road users that they are approaching a Zebra crossing and should be prepared to stop if necessary.

Ring roads are designed to relieve congestion in towns and city centres.

In this instance, you should particularly careful as there are clearly children involved who may be distracted and run into the road.

A red cross over a blue background indicates a clearway, which means you're not allowed to stop – not even to set down or pick up passengers. In some instances, restrictions may only apply at certain times of the day.

Road humps are used to slow down traffic.They're found in places where there are often pedestrians, such as

• shopping areas
• near schools
• residential areas.

Watch out for people close to the kerb or crossing the road.

These lines may be painted on the road on the approach to a roundabout, a village or a particular hazard. The lines are raised and painted yellow, and their purpose is to make you aware of your speed.

You'll need to slow down. At hump bridges, your view ahead will be restricted and the road will often be narrow. If the bridge is very steep, sound your horn to warn others of your approach.

There is a steep downwards hill ahead with a gradient of 20% so a low gear should be used.

If you're carrying children on your vehicle and it isn't on a scheduled route used by the general public, the bus must display this sign to the front and rear. When carrying children to and from school, it's likely that you'll have to make several stops in places other than recognised bus stops. Think carefully before you stop. Don't cause unnecessary inconvenience to other road users.

Parking restrictions apply in a variety of places and situations. Make sure you know the rules and understand where and when restrictions apply. Controlled parking areas will be indicated by signs and road markings. Parking in the wrong place could cause an obstruction and danger to other traffic. It can also result in a fine

You mustn't park or stop on a road marked with double white lines (even where one of the lines is broken) except to pick up or set down passengers.

A green arrow indicates that the lane is available to traffic facing the signal. A white diagonal arrow means that the lane is closed ahead and traffic should move to the next lane on the left. A red cross means that the lane is closed to traffic facing the signal.

Triangular signs give you a warning of hazards ahead. They're there to give you time to prepare for the hazard; for example, by adjusting your speed.

This sign is found at the entrance to a road that can only be used for access.

If you see a triangular sign with a row of cars on it, it's warning you that you're approaching a congested area, so be prepared to stop. The queues ahead might be hidden, so make sure you're aware of vehicles behind you that could be following too closely.

This is a 'level crossing without barrier or gate ahead' sign. Trains may be passing here but there will be no gates or barriers at the level crossing.

This sign indicates that vehicles transporting explosives are prohibited from travel along the roadway behind it.

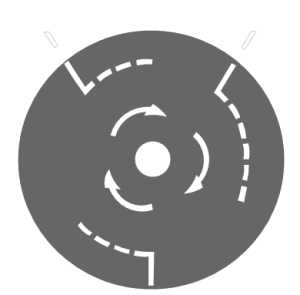

This broken white line is a reminder to give way to traffic from the right at roundabouts. You can expect to find these at larger roundabouts.

Warning signs are there to make you aware of potential hazards on the road ahead. Act on the signs so you are prepared and can take whatever action is necessary.

These markings are used outside schools so that children can see and be seen clearly when crossing the road. Parking here would block people's view of the school entrance. This could endanger the lives of children on their way to and from school.

The crossroads sign indicates an intersection ahead. You should prepare to give way to other vehicles. The sign warns of potential traffic from different directions. It helps you anticipate the need to stop or slow down.

This sign marks a route which buses are not permitted to use.

This sign gives advance warning of a staggered junction ahead with roads to the left and right. Be aware that vehicles may be emerging from these roads.

This sign marks a shared route which may only be used by pedal cycles and pedestrians. Category: Bus and cycle signs.

You must obey these signs even if there appear to be no problems ahead.

These signs apply only to tram drivers, but you should know their meaning so that you're aware of the priorities and are able to anticipate the actions of the driver.

This sign tells you that you are not permitted to make a U-turn. It is commonly displayed on approach to junctions on dual carriageways.

Put a warning triangle on the road at least 45 metres (147 feet) behind your broken-down vehicle on the same side of the road, or use other permitted warning devices if you have them. Always take great care when placing or retrieving them, but never use them on motorways.

You'll see this sign if there has been an incident ahead and the motorway is closed. You must obey the sign. Make sure that you prepare to leave in good time. Don't cause drivers to take avoiding action by cutting in at the last moment.

If the road has two lanes, you can use either lane and overtake on either side. Use the lane that's more convenient for your destination unless signs or road markings indicate otherwise.

Some bus lanes operate only during peak hours and other vehicles may use them outside these hours. Make sure you check the sign for the hours of operation before driving in a bus lane.

Where you see this road marking you should give way to traffic on the main road. It might not be used at junctions where there is relatively little traffic. However, if there is a double broken line across the junction the 'give way' rules still apply.

At some junctions, there may be separate signals for different lanes. These are called 'filter' lights. They're designed to help traffic flow at major junctions. Make sure that you're in the correct lane and proceed if the way is clear and the green light shows for your lane.

This sign is placed on sections of road where overtaking would be dangerous. There'll often be a plate underneath the sign, telling you how far the restriction extends. You mustn't overtake until you pass another sign cancelling the restriction.

The road ahead is at risk from falling rocks and you may also come across fallen rocks in the road

The slippery road sign warns drivers of potential hazards. It indicates that the road surface may be slippery. This can occur due to rain, ice, or oil spills. The sign features a car with skid marks.

Route for trams only. The sign may include the bus symbol, the pedal cycle symbol and/or the word ‘taxi’ where these vehicles may use the tram route.

This sign is found on slow-moving or stationary works vehicles. If you wish to overtake, do so on the left, as indicated. Be aware that there might be workmen in the area.

A contraflow system means that traffic will be flowing along lanes in the opposite direction to the norm. As such, when you approach a contraflow system you should reduce your speed in plenty of time.

Keep a lookout for traffic signs. If you're directed to change lanes, do so in good time. Don't push your way into traffic in another lane try to gain advantage by delaying changing lanes

With-flow bus lane which pedal cycles and taxis may also use ahead.
